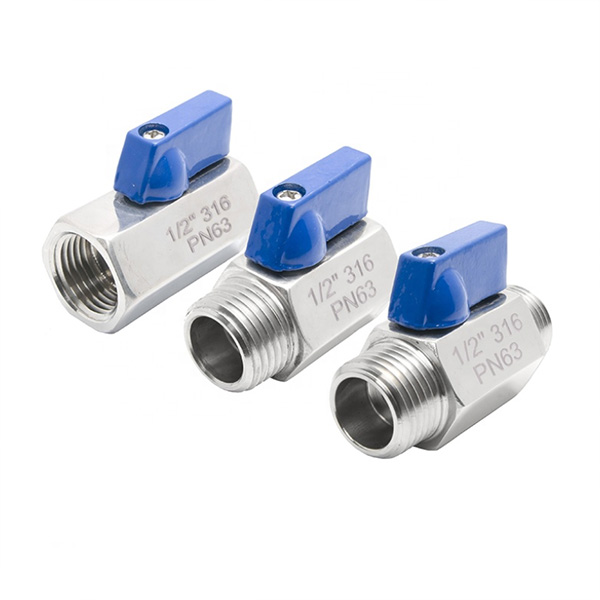

Stainless Steel PN63 Mini Ball Valve

Actuator：Steel Handle

Valve Body：Stainless Steel/Brass

Valve Ball：Brass

Valve Seal：PTFE

Valve Stem：SS420

Standard：PN63

No.：LWBV-17

Size： DN10-DN15

Weight：1-3KG

Temperature：-10℃-120℃

Inquire Now

Parameter

Mini Ball Valve -LWBV-17 ,is a normal type of ball valve - Steel Handle Stainless Steel/Brass Valve Body & Brass

Ball Mini Valve. Ball valve is spheroid around a rotary axis lines to achieve valve body opened and closed a valve.

PN63 mini ball valve
Material: stainless steel 304/stainless steel 316;
Connection: internal and external thread connection, internal thread connection at both ends;
Nominal pressure: PN63, 63 kgf;
Thread type: national standard inch pipe thread, BSP, BSPT, NPT American standard thread;
Product specifications: 1 point, 2 points, 3 points, 4 points, 6 points, 1 inch, etc.;
Nominal diameter indication: DN6, DN8, DN10, DN15, DN20J, DN25, etc.

Advantage

The ball valve should be used for open ,close and regulating medium flow in pipeline of petroleum,chemical,food,medicine,metallurgy,ship,can also be used in a variety of corrosive medium,the following feature.

Excellent bidirectional sealing performance,minimized operation torque.
Flow characteristics tend to be straight,good regulation performance.
Choosing different materials, can be used in corrosive medium.
Simple and compact structure,compact and light,easy to transport,install and disassemble.
