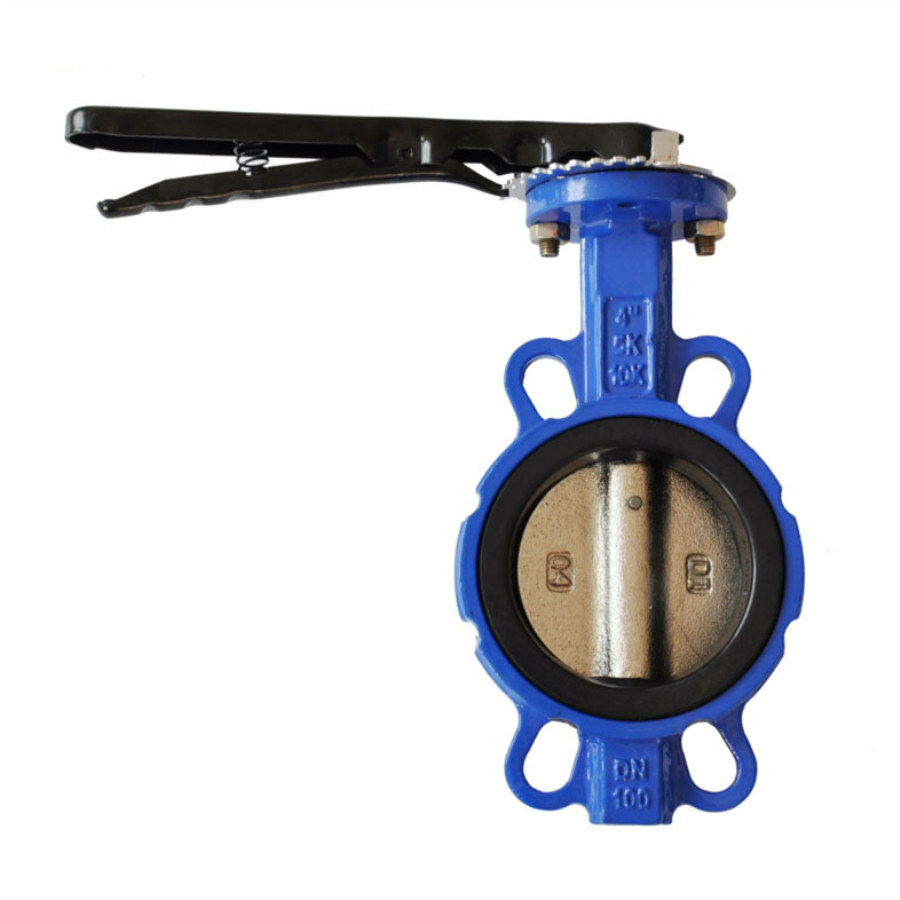

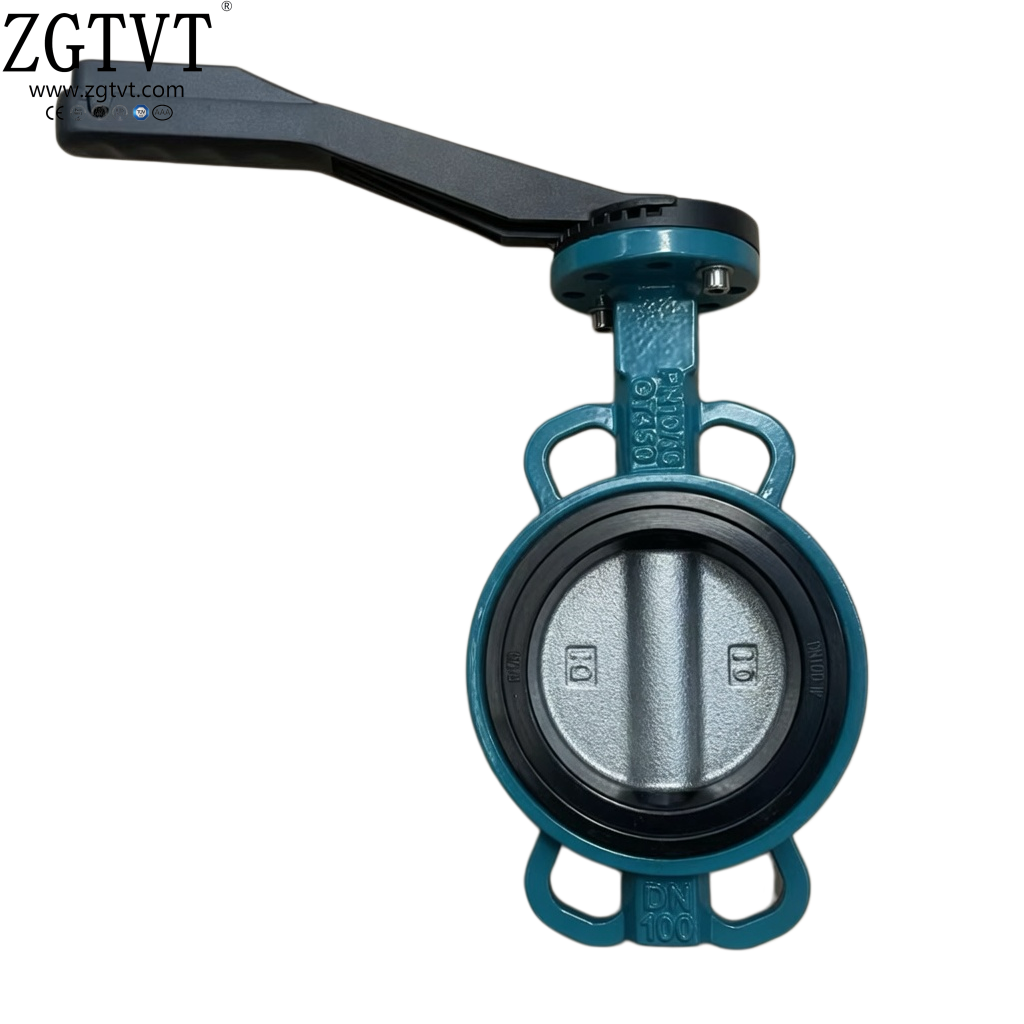

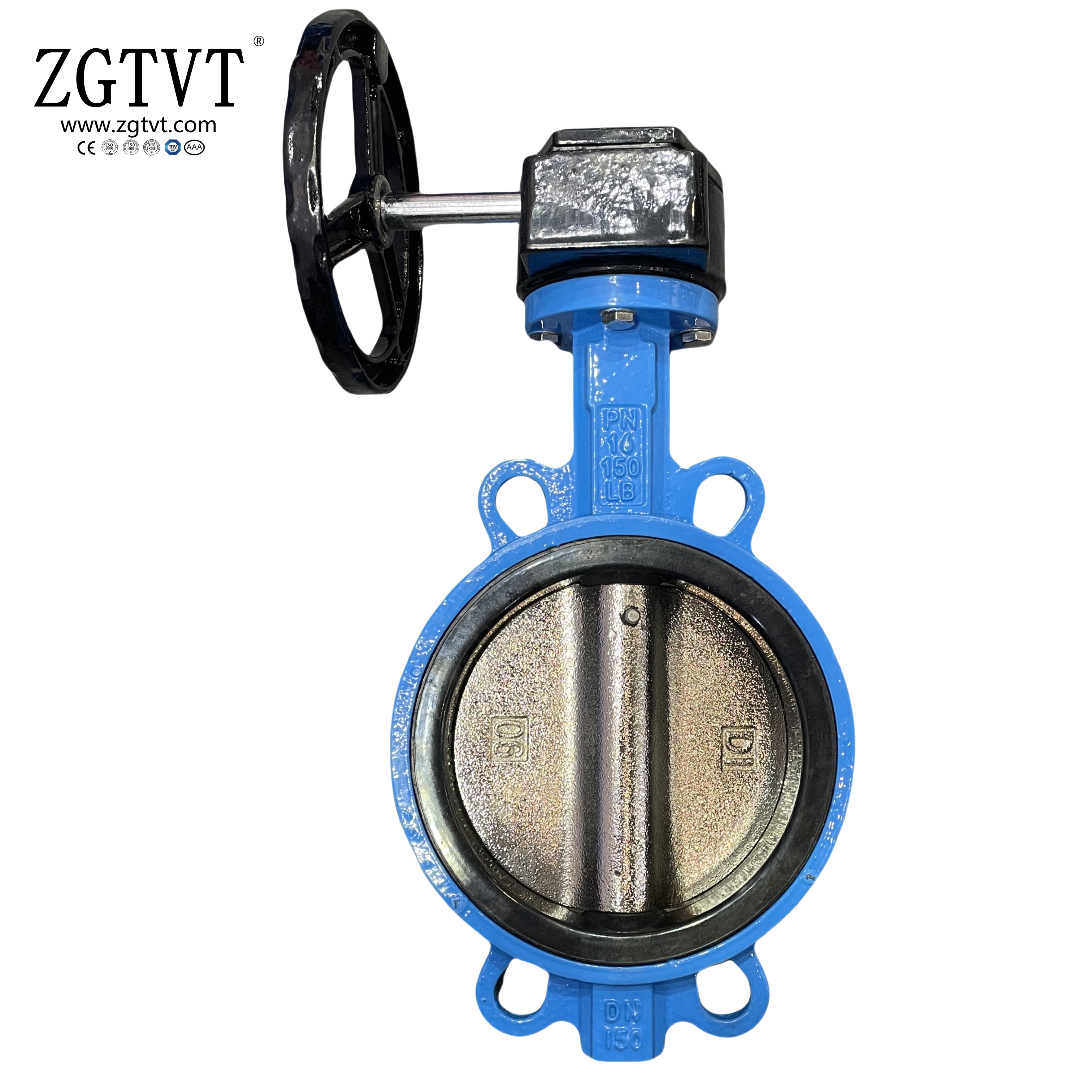

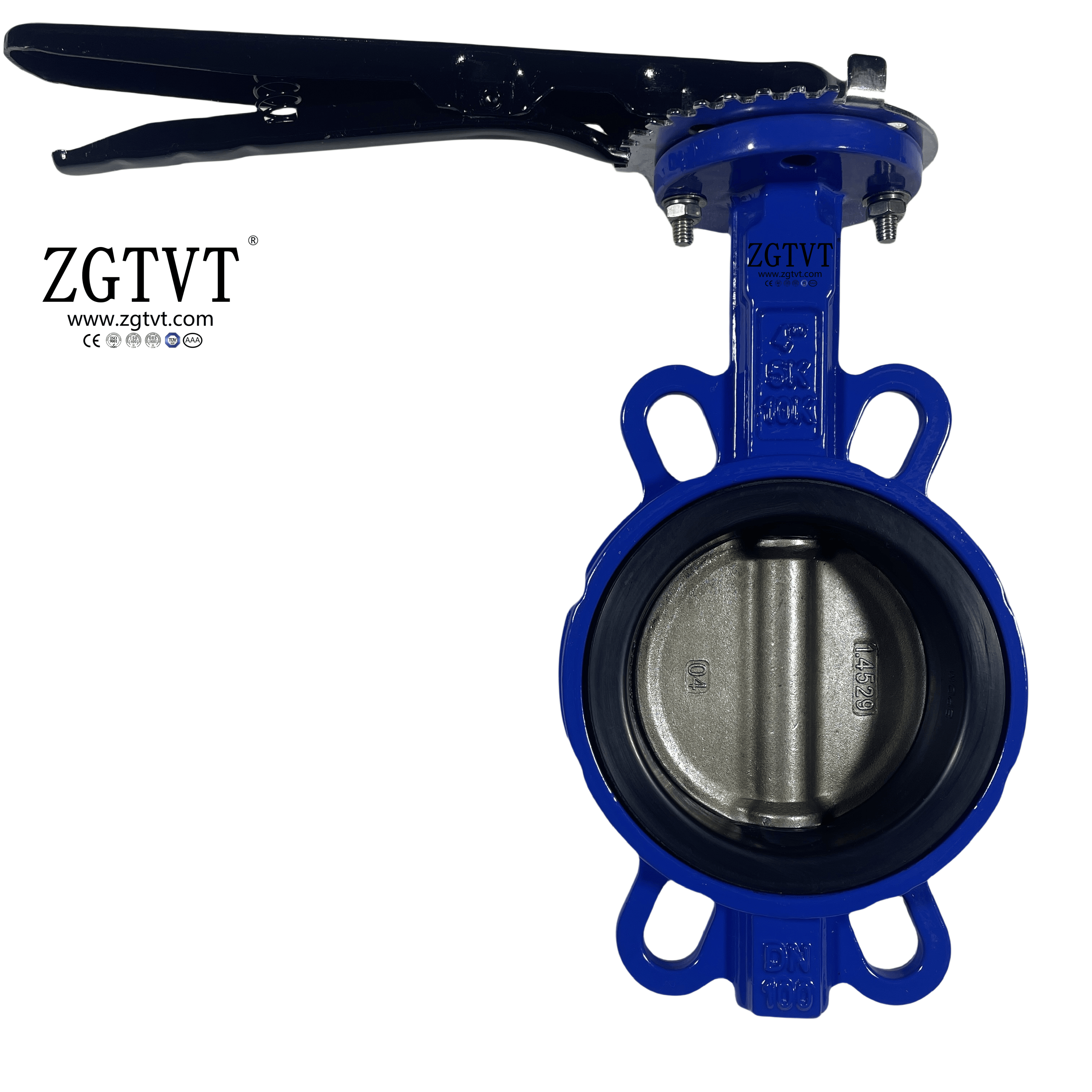

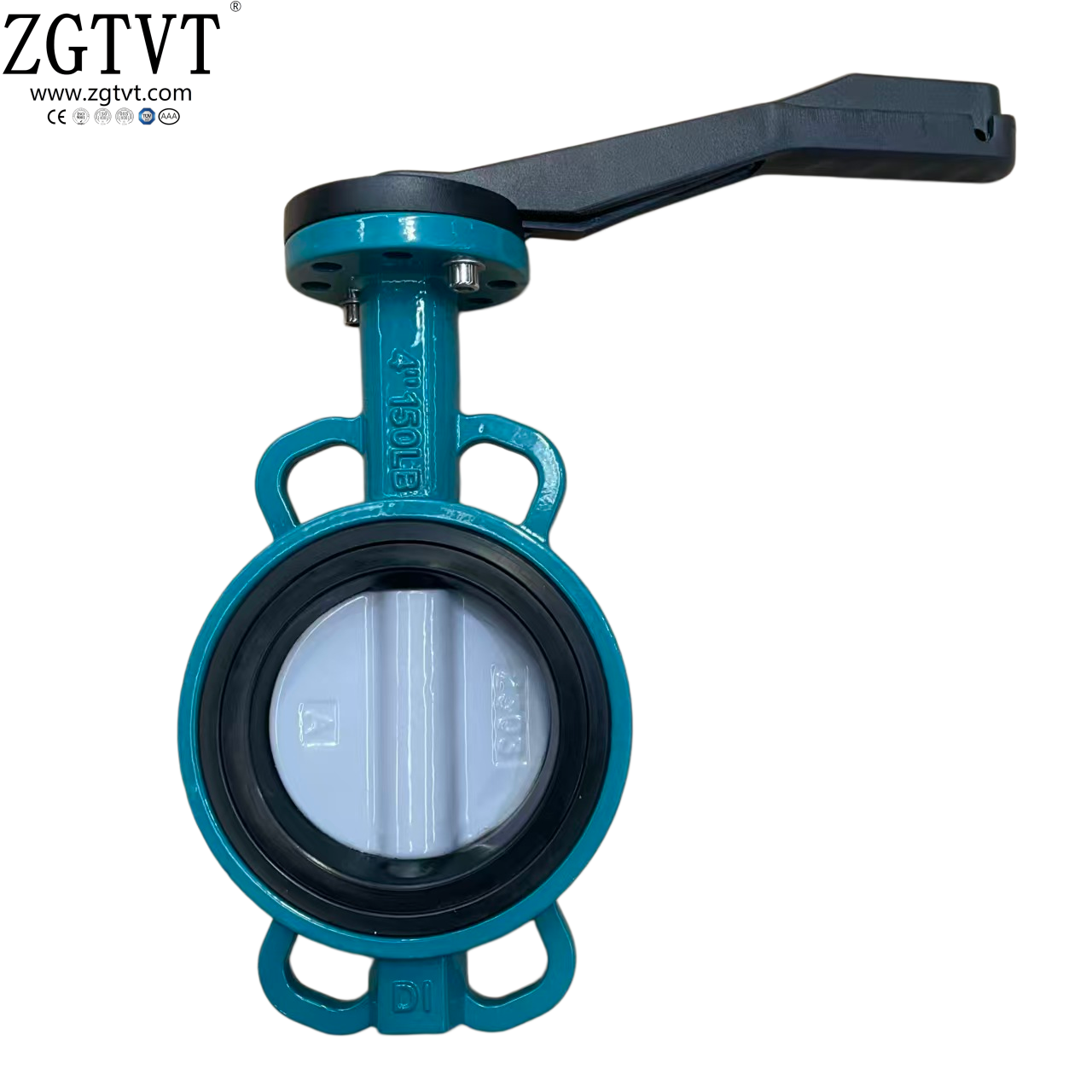

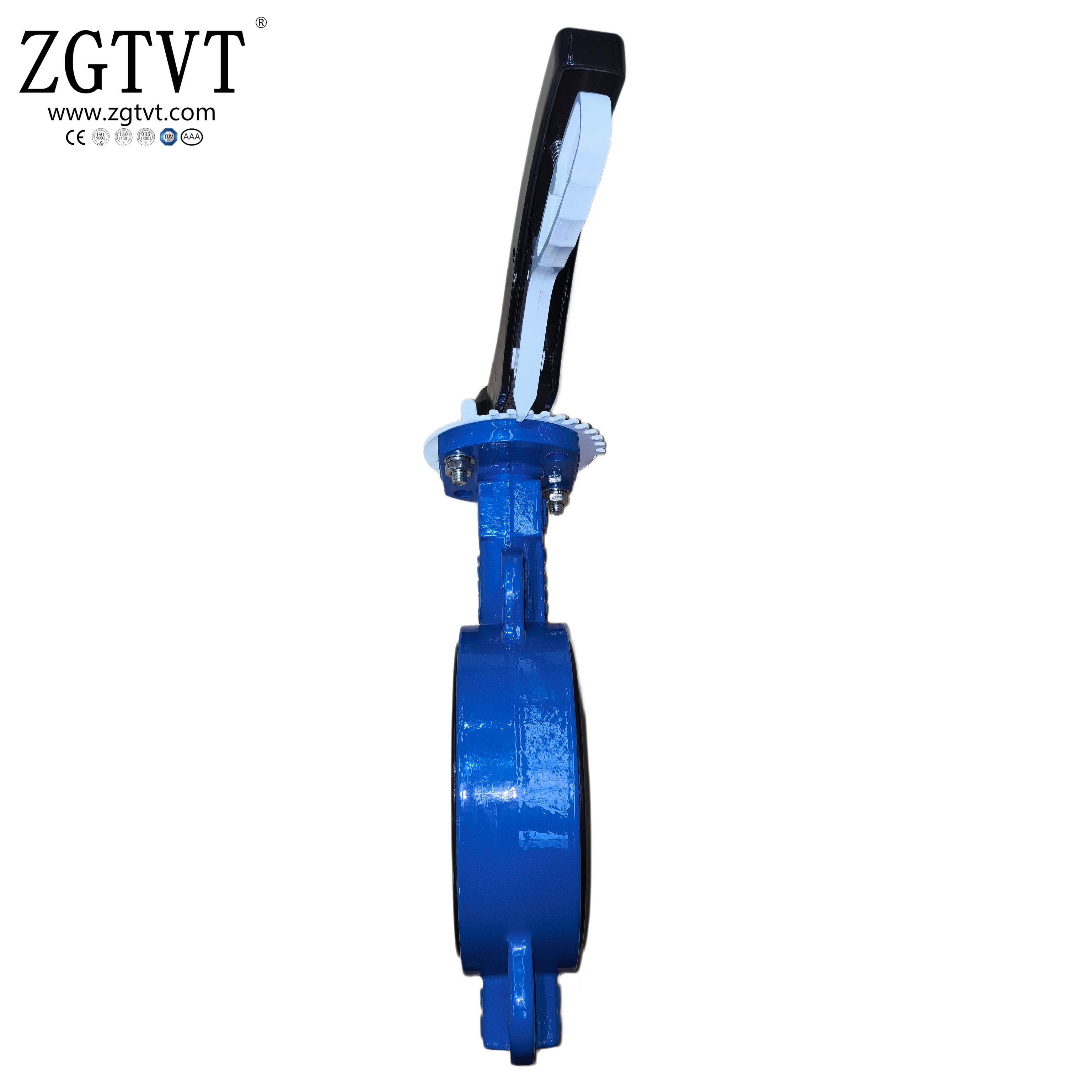

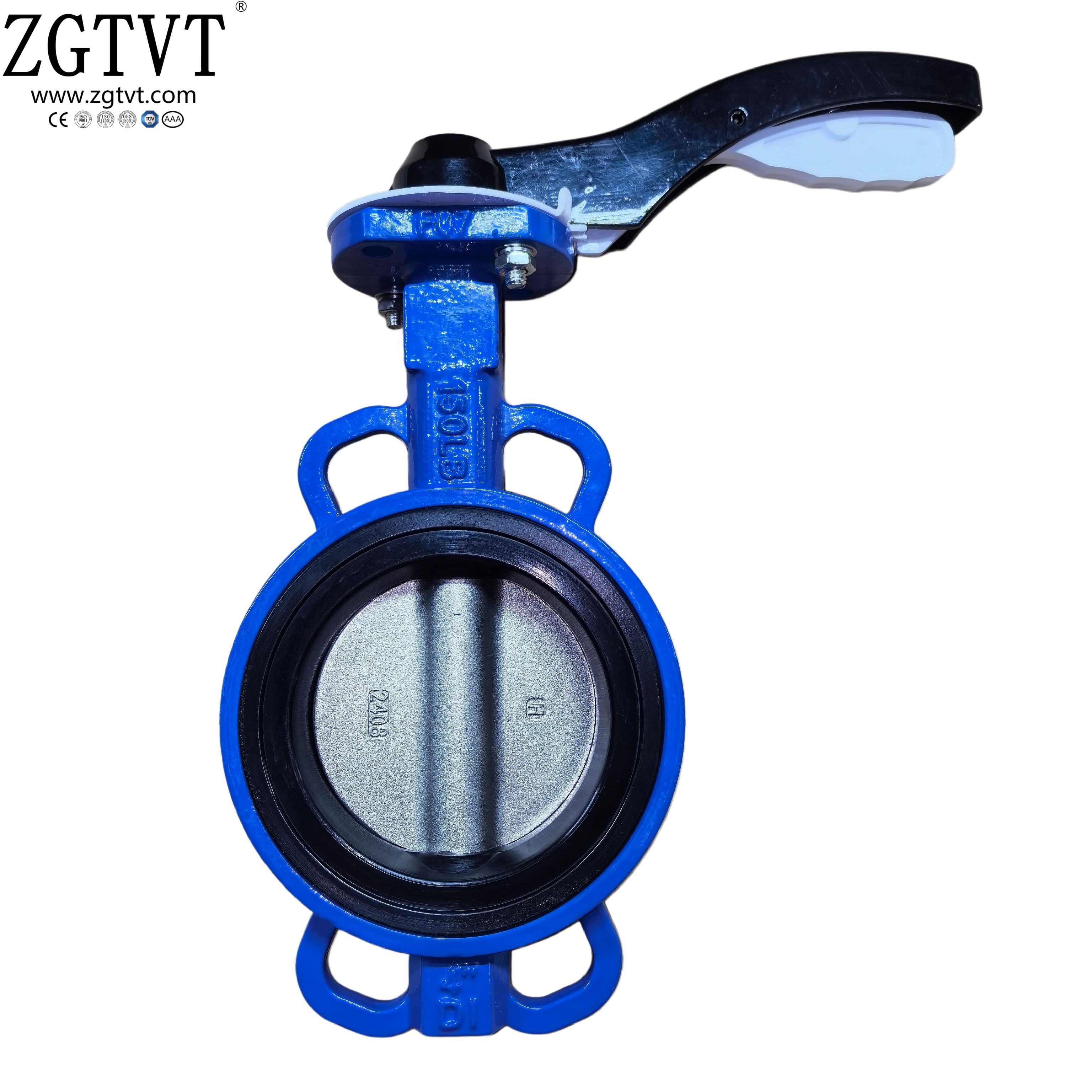

Handle Ductile Iron Wafer Type Butterfly Valve

Actuator：Steel Handle

Valve Body：Ductile Iron/GGG40/GGG50

Valve Disc：Ductile Iron GGG50

Valve Stem：Carbon Steel

Valve Seat：EPDM

Pin：With Pin

Bolt：Stainless Steel SS201

Stem：Square

Standard：PN10/16 150LB 5K/10K

Top Flange：ISO 5211

No.：ZGTVTD71X-16Q

Size：4inch DN100

Weight：4.2KG

Temperature：-10℃-120℃

Inquire Now Next Product

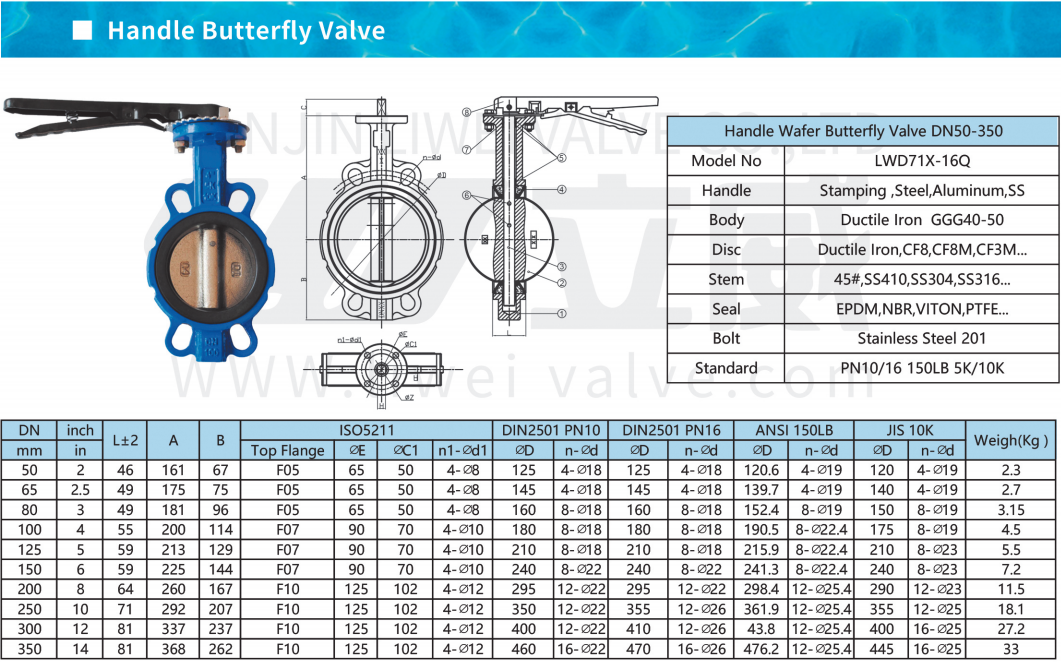

Parameter & Drawing

Wafer Butterfly Valve -ZGTVTD71X-16Q ,is a normal type of butterfly valve - Handle Type Ductile Iron Valve Body & Disc Wafer

Butterfly Valve.

Valve body and seat are adopted with split design for easy maintenance and replacement.
After maching of valve body, because of without lining rubber, to avoid the pressure deformation of the lining rubber.
Which ensure the accuracy of body symmetry and reduce the torque of butterfly valve.
Valve stem and valve body are equipped with 4 oil proof bearing,which is benefical to stem support.the upper shaft
hole is equipped with 2 o-ring and 1 special rectangular screw ring water seal,which make s the axial seal more reliable.
The 2 ends of the valve plate shaft hole are designed with grooves,which can effectively prevent damage of valve seat
caused by the excessive extrusion when valve shaft is loaded into valve to ensure the sealing of valve seat end face and
the valve plate.
After quenching and tempring process ,the pin material of butterfly valve has high strength and high corrosion resiata
nce ,and the connection is more safe and stable.
A Non-Pin stem adopts an anti-exit structure ,spring+U type card structure are used in the upper part of the stem,
which can not only compensate for installation errors,but also prevent the stem from loosening.
LT type valve body is thicker than the normal wafer butterfly valve with high pressure resistance and not easy to deform.

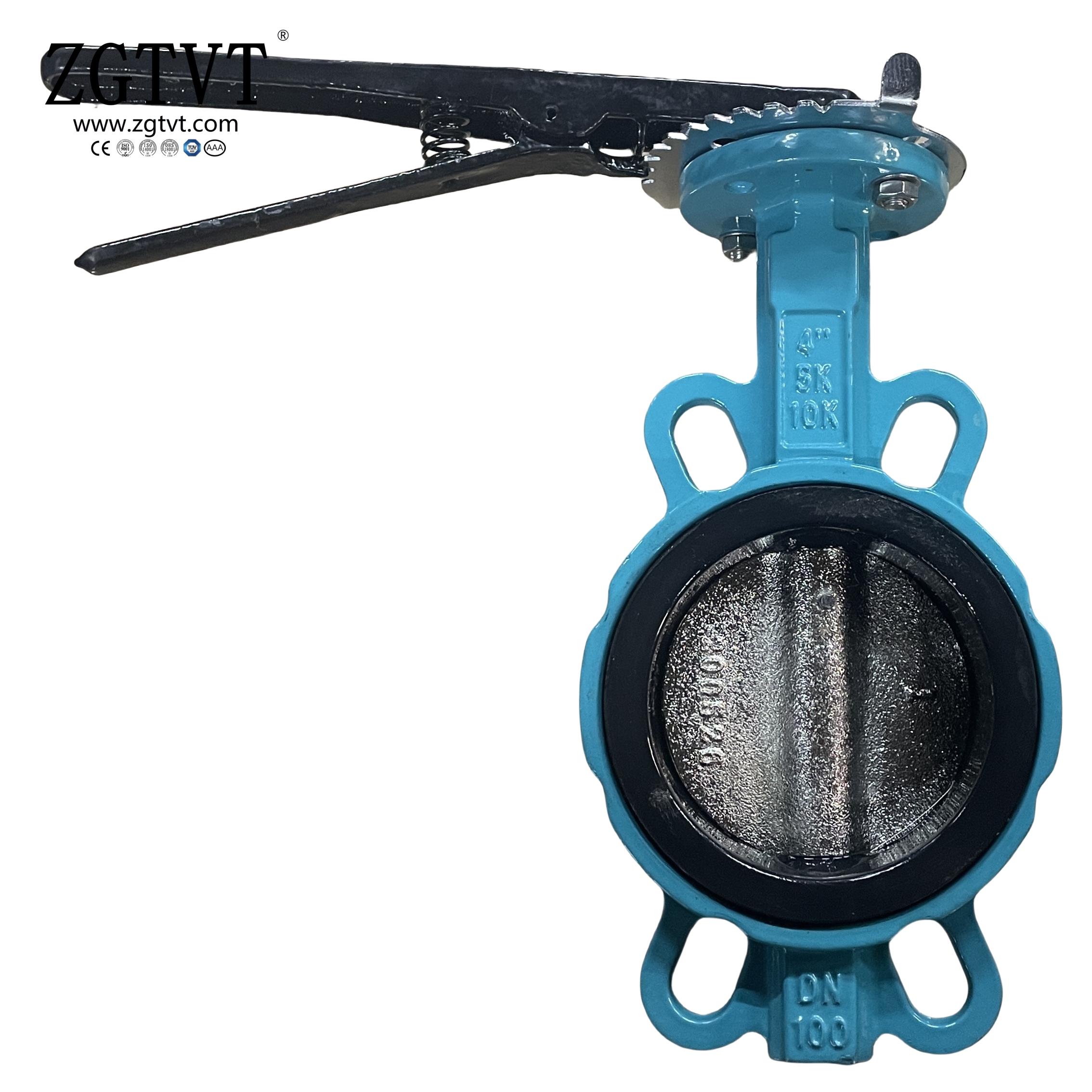

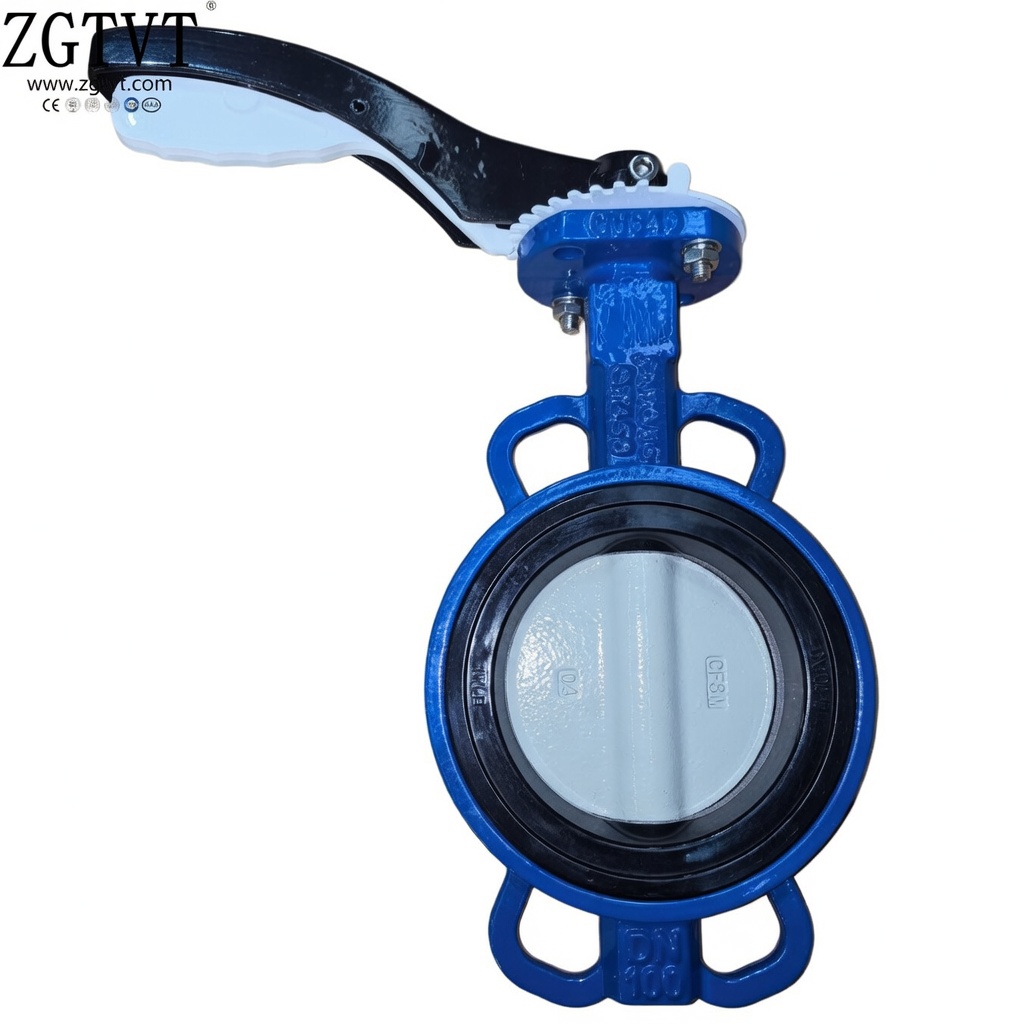

Handle Ductile Iron Wafer Type Butterfly Valve

Weight & Packing

Weight：

2inch	2.5inch	3inch	4inch	5inch	6inch	8inch	10inch	12inch	14inch
2.2kg	2.7kg	2.9kg	4.5kg	5.5kg	6.7kg	11.5kg	17.6kg	26.3kg	35.4kg

Packing Details：

Normal We use 1.1*1.1*1.1m Wooden Box

Each Valve we use 1 pcs bubble bags and 1 pcs plastic bags

1 20GP container can loading 20 * 1.1*1.1*1.1m wooden boxes

1 20GP container can loading 24-26Ton

1 1.1*1.1*1.1m wooden box can loading valves qty

Calculate Base On Wafer Butterfly Valve Handle Type

1 1.1*1.1*1.1m wooden box can packing 2inch 500Pcs

1 1.1*1.1*1.1m wooden box can packing 2.5inch 450Pcs

1 1.1*1.1*1.1m wooden box can packing 3inch 410Pcs

1 1.1*1.1*1.1m wooden box can packing 4inch 270Pcs

1 1.1*1.1*1.1m wooden box can packing 5inch 190Pcs

1 1.1*1.1*1.1m wooden box can packing 6inch 150Pcs

1 1.1*1.1*1.1m wooden box can packing 8inch 100Pcs

1 1.1*1.1*1.1m wooden box can packing 10inch 60Pcs

1 1.1*1.1*1.1m wooden box can packing 12inch 40Pcs

1 1.1*1.1*1.1m wooden box can packing 14inch 30Pcs

Each Wooden Box weight is 60-65KG

Describe

ZGTVTD71X-16Q Wafer Type Butterfly Valve

Actuator：Steel Handle/Aluminum2002 2004 2007/Stamping Handle/Stainless Steel

Valve Body：Ductile Iron/GGG40/GGG50/WCB ASTM A216/Brass/Aluminum/Stainless Steel

Valve Disc：Ductile Iron GGG50/Aluminum-Bronze/Stainless SteelCF8 CF8M CF3M 2507 1.4529/WCB

Valve Stem：Carbon Steel/SS410 SS420 SS416 SS304 SS316 SS316L

Valve Seat：EPDM/NBR/PTFE/Viton/Natural Rubber

Pin：With Pin/No Pin

Bolt：Stainless Steel SS201

Stem：Square/Round

Standard：PN10/16 150LB 5K/10K

Top Flange：ISO 5211

No.：LWBV-1
Size：4inch DN100, DN20-DN1200

Weight：4.2KG----

Temperature：-10℃-120℃
