WCB 150LB Wafer Check Valve

Wafer Type Check Valve

Standard:PN10/16

Body:WCB

Disc: WCB

Shaft:2CR13

Seal:EPDM

Size:DN50-DN800

Class;150LB

Inquire Now Next Product

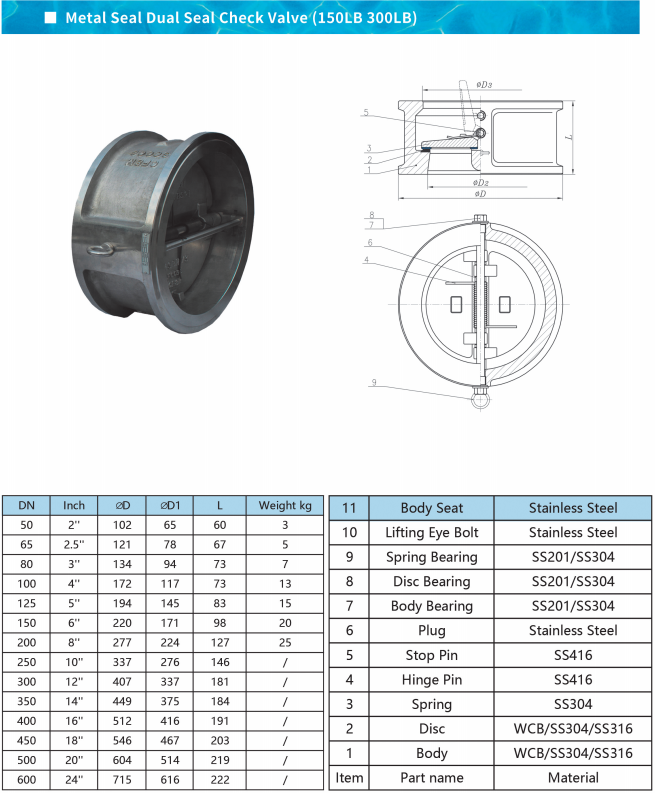

Parameter

Wafer type check valve is used in PN10-42.0MPa,Class150-2500;DN15-DN1200,NPS1/2-48;Working temperature

-196-540C etc.many kinds of pipelines

Which can prevent the refluence of medium And can be applicable to water,steam,oil,nitric acid,high oxidizability

mediums,urea and so on,viachoosing different types of materials.
Designing and manufacture:AP594,AP6D,JB/T8937;

Sructure length:AP594,AP6D,DN3202,JB/T8937;

Tes2 Sde of pressure-temperature:ANS16.34,DN2401,GB/9124,HG20604,HG20625,SH3406,JBT74;

Flange:JB/T74-90,GB/9112-9124,HG20592-20635,SH3406,ANSB16.5,DN2543-2548,GB/T13402,AP605,ASMEE16.47;

Advantage

Short length structure ,which is only 1/4-1/8 times the length of conventional flange connecting check valve.
Small volume and light weight,which is only 1/4-1/20 times the weight of conventio nal flange connecting
check valve.
Quickly closed by the disc,small pressure of hammer blow.
Which can be used in horizontal pipeline or vertical pipeline,and also has convenient mounting.
Very nice flow channel and small fluid resistance.
Long life of using ,high reliability.

Describe

Weight：

2inch	2.5inch	3inch	4inch	5inch	6inch	8inch
3kg	5kg	7kg	13kg	15kg	20kg	25kg

Packing Details：

Normal We use 1.1*1.1*1.1m Wooden Box

Each Valve we use 1 pcs bubble bags and 1 pcs plastic bags

1 20GP container can loading 20 * 1.1*1.1*1.1m wooden boxes

1 20GP container can loading 24-26Ton

1 1.1*1.1*1.1m wooden box can loading valves qty

Calculate Base On Gate Valve With Handle Wheel

1 1.1*1.1*1.1m wooden box can packing 2inch 200Pcs

1 1.1*1.1*1.1m wooden box can packing 2.5inch 180Pcs

1 1.1*1.1*1.1m wooden box can packing 3inch 150Pcs

1 1.1*1.1*1.1m wooden box can packing 4inch 120Pcs

1 1.1*1.1*1.1m wooden box can packing 5inch 90Pcs

1 1.1*1.1*1.1m wooden box can packing 6inch 80Pcs

Each Wooden Box weight is 60-65KG
