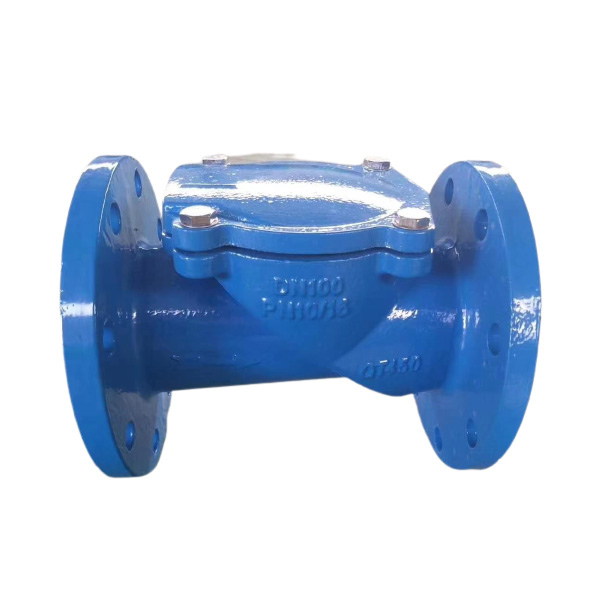

Ductile Iron Rubber Plate Check Valve

Rubber Plate Check Valve

Standard:PN10/16

Body:Ductile Iron

Disc: Ductile Iron

Seal:EPDM

Color:Blue

Size:DN50-DN400

Inquire Now Next Product

Parameter

Design standard:API 609, EN 593
Temperature range:-20℃ to+120℃(depending on pressure,medium and materal)
Test inspection:APL 598, EN 12266-1

Face to face:DIN3202 F4, BS 5163
Flange accommodation:

AS 2029 "D","E"

BS 10"D","E"

JIS 5K/10K/16K

ASME B16.1 125LB

ASME B16.5 150LB

BS 4504 PN6/PN10/PN16

DIN 2501 PN6/PN10/PN16

ISO 7005 P/PN10/PN16

Advantage

1.The opening and closing parts of the rubber flap check valve depend on the flow of the medium and the force to

open or close by themselves

2.in order to prevent the reverse flow of the medium valve parts

3. mainly suitable for horizontal installation of water supply and drainage system, can be installed in the water pump

outlet, in order to prevent the reverse flow and water hammer damage to the pump.

4.The valve disc is made of rubber and steel plate by high temperature pressing, scour resistance, good sealing

performance, simple product structure, maintenance, repair and transportation are very convenient.

Describe

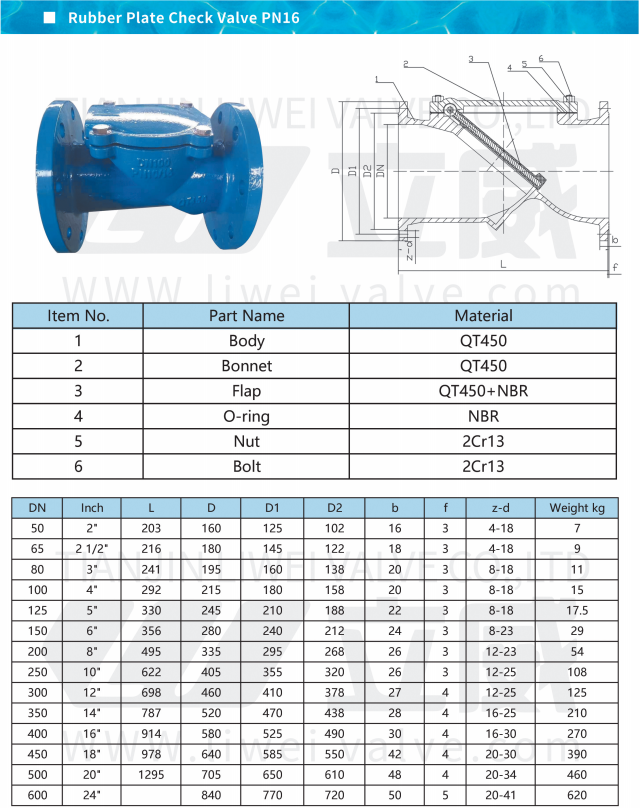

Rubber Flap Check Valve

Size:DN50-DN400

Body:Ductile Iron/WCB/Stainless Steel

Disc:Ductile Iron/WCB/Stainless Steel

Standard；PN10/PN16

Weight：

2inch	2.5inch	3inch	4inch	5inch	6inch	8inch	10inch	12inch	14inch
7kg	9kg	11kg	15kg	17.5kg	29kg	54kg	108kg	125kg	210kg

Packing Details：

Normal We use 1.1*1.1*1.1m Wooden Box

Each Valve we use 1 pcs bubble bags and 1 pcs plastic bags

1 20GP container can loading 20 * 1.1*1.1*1.1m wooden boxes

1 20GP container can loading 24-26Ton

1 1.1*1.1*1.1m wooden box can loading valves qty

Calculate Base On Gate Valve With Handle Wheel

1 1.1*1.1*1.1m wooden box can packing 2inch 65Pcs

1 1.1*1.1*1.1m wooden box can packing 2.5inch 55Pcs

1 1.1*1.1*1.1m wooden box can packing 3inch 50Pcs

1 1.1*1.1*1.1m wooden box can packing 4inch 40Pcs

1 1.1*1.1*1.1m wooden box can packing 5inch 35Pcs

1 1.1*1.1*1.1m wooden box can packing 6inch 30Pcs

Each Wooden Box weight is 60-65KG

Tags: Rubber Flap Check Valve, Rubber Plate Check Valve, JIS Rubber Check Valve, Rubber Check Valve, Check Valve , DIN Rubber Check Valve, Flange Rubber Check Valve
