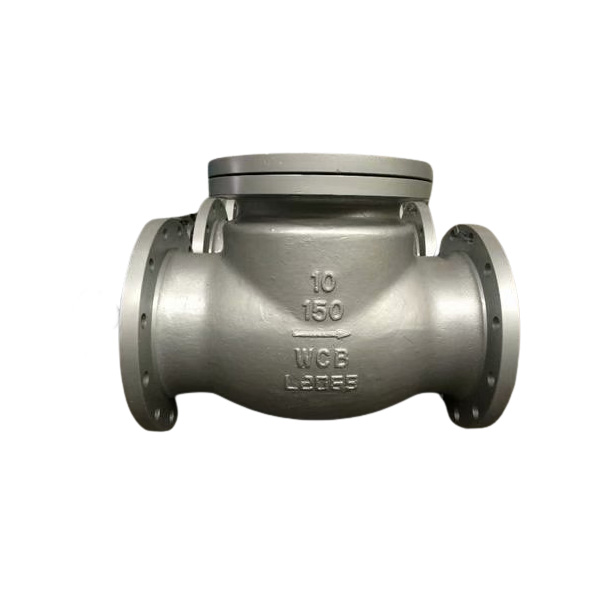

Swing Check Valve

Standard:PN10/16

Body:A216 WCB

Disc: A216 WCB

Seal:Brass

Size:DN50-DN600

Class：150LB

Inquire Now Next Product

Parameter

Model Number:H64H
Media:WOG
Pressure:Class150LB~Class2500LB
Standard:API,BS,DIN,JIS
Certificate:API,ISO,CE
Body material:Carbon Steel,Stainless Steel

Advantage

1. Swing check valve, also known as a check valve or reverse valve

2. Its role is to prevent the media in the pipeline flow back.

3.Open and close parts by medium flow and force to open or close

4.In order to prevent medium flow back valve called check valve

5.Check valve belongs to the automatic valve class

6. Mainly used for the one-way flow of the medium on the pipeline

7.Only allow the medium to flow in one direction, to prevent accidents

Describe

1.Swing Check Valve is designed with compact construction and is maintenance free.
2.They can be installed in horizontal and vertical positions (upward flow direction) in the pipelines system.
3.It is widely used in process industries such as Palm Oil and Refinery Plant, Petrochemical,
4.Fire Protection System, Power Plant, Water Treatment Plant and Cooling System.

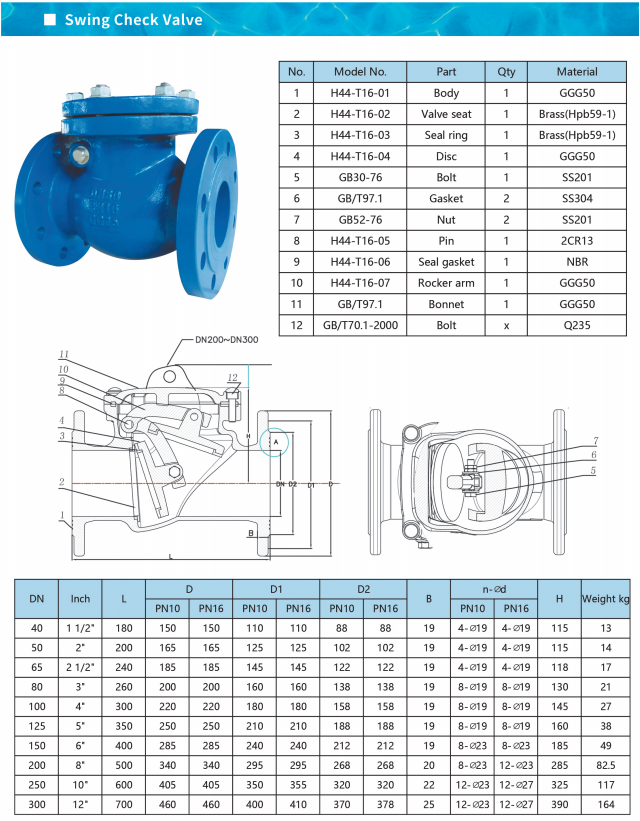

Weight：

2inch	2.5inch	3inch	4inch	5inch	6inch	8inch	10inch	12inch
14kg	17kg	21kg	27kg	38kg	49kg	82.5kg	117kg	164kg

Packing Details：

Normal We use 1.1*1.1*1.1m Wooden Box

Each Valve we use 1 pcs bubble bags and 1 pcs plastic bags

1 20GP container can loading 20 * 1.1*1.1*1.1m wooden boxes

1 20GP container can loading 24-26Ton

1 1.1*1.1*1.1m wooden box can loading valves qty

Calculate Base On Swing Check Valve

1 1.1*1.1*1.1m wooden box can packing 2inch 65Pcs

1 1.1*1.1*1.1m wooden box can packing 2.5inch 55Pcs

1 1.1*1.1*1.1m wooden box can packing 3inch 50Pcs

1 1.1*1.1*1.1m wooden box can packing 4inch 40Pcs

1 1.1*1.1*1.1m wooden box can packing 5inch 35Pcs

1 1.1*1.1*1.1m wooden box can packing 6inch 30Pcs

Each Wooden Box weight is 60-65KG
