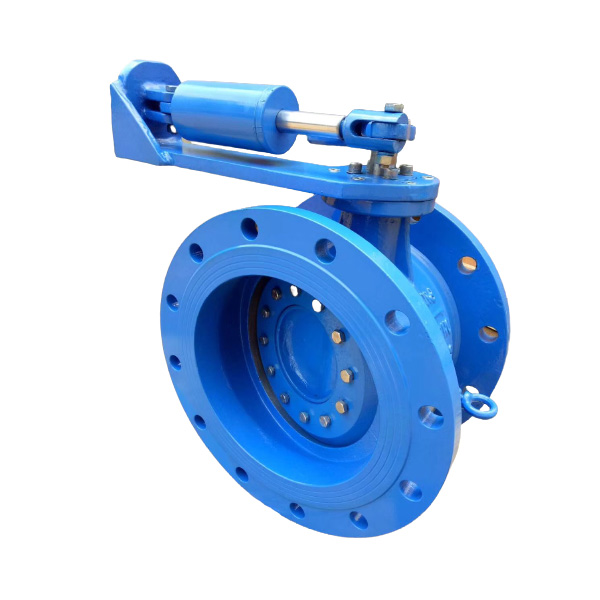

Ductile Iron Body and Disc Tilting Check Valve PN16

Tilting Check Valve

Standard:PN16/24

Body:Ductile Iron GGG50

Disc: Stainless Steel

Seal:Brass

Size:DN200-DN2000

Body Seat:SS304 SS316

Inquire Now Next Product

Parameter

The micro-resistance slow-closing check valve is suitable for nominal pressure PN1.0MPa~42.0MPa,

Class150-2500; nominal diameter DN15~1200mm, NPS1/2~48; working temperature -196~540℃ on various

pipelines. Prevent the medium from flowing back. By selecting different materials, it can be applied to various

media such as water, steam, oil, nitric acid, acetic acid, strong oxidizing media and urea.

Advantage

The micro-resistance slow-closing check valve is also called a check valve, its function is to prevent the medium

in the pipeline from flowing back. The valve whose opening and closing parts are opened or closed by the flow

and force of the medium to prevent the medium from flowing back is called a check valve. Check valves belong

to the category of automatic valves, which are mainly used in pipelines where the medium flows in one direction,

and only allow the medium to flow in one direction to prevent accidents. It is suitable for clean medium, not

suitable for medium containing solid particles and high viscosity.

Describe

Product name:Tilting Disc/Seat Check Valve
Working pressure:EN1092 PN10,PN16; ASME 125LB,150LB
Body material:GGG40/50; WCB; CF8; CF8M; 2205; 2507
Model Number:Tilting Disc Check Valve
Media:WOG
Weight:Depend on differenct size
Stem:SS410/420/416; SS431; SS304
