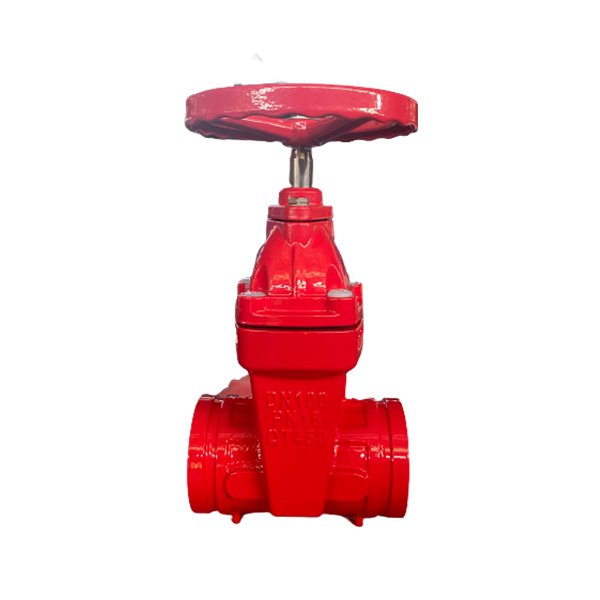

Ductile Iron Handle Wheel Actuator Fire Control Groove Gate Valve

Actuator：Casting Handle Wheel

Valve Body：Ductile IronGGG50

Valve Disc：Ductile Iron+EPDM

Valve Stem：45# Steel

Standard：PN10/16

No.：LWGV-6

Size：4inch DN40~300

Weight：12~16KG

Temperature：-10℃-120℃

Inquire Now Next Product

Parameter

The Groove Gate spontaneous development department of the Company's patented product,the trench

between the two ends of the valve gate to shorten the length of the structure,especially at both ends of the

flange can be omitted,thus saving a lot of materials,lower production costs. This valve can be realized using

grooved in the pipeline fast,reliable connections to improve the construction efficiency,reduce installation and

maintenance costs.

This trench gate valve body and the valve cover with screw connection,change the past flange connection,saving

the connection of connectors,and a self-locking screw,easy to loose,solid and strong.compact structure,assembly

adjustment convenient,but also saves material.

Advantage

The grooved gate valve [1] adopts a top-mounted structure, which reduces the connecting bolts of the valve

body under the conditions of high pressure and large diameter, enhances the reliability of the valve and can

overcome the influence of the weight of the system on the normal operation of the valve.

Describe

LWGV-11 Groove Gate Valve

Actuator：Steel/Casting Handle Wheel

Valve Body：Ductile Iron/GGG40/GGG50

Valve Disc：Ductile Iron GGG50+EPDM

Valve Stem：Carbon Steel/SS410 SS420 SS416 SS304 SS316 SS316L

Valve Seat：EPDM/NBR

Nut: Brass/Ductile Iron

Standard：PN10/16

No.：LWGV-6
Size：4inch DN40~300

Weight：13KG----

Temperature：-10℃-120℃

Tags: Gate Valve, PN10/16 Gate Valve, Ductile Iron Gate Valve , GGG50 Gate Valve, DI Disc Gate Valve, DI Body Gate Valve, rubber seal gate valve, Handle Wheel Gate Valve
