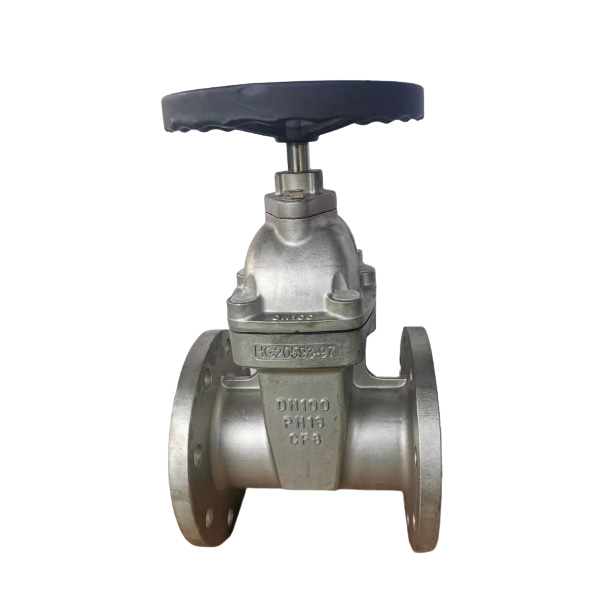

Stainless Steel Gate Valve

Actuator：Casting Handle Wheel

Valve Body：CF8 SS304

Valve Disc：CF8 SS304

Valve Stem：SS304 CF8

Nut: Brass

Standard：PN16

No.：LWGV-4

Size：4inch DN100 DN40-DN800

Weight：12~16KG

Temperature：-10℃-120℃

Inquire Now Next Product

Parameter

This type of stainless steel gate valve is a soft-sealed stainless steel gate valve. The valve body is made of 304

stainless steel. The valve plate is made of ductile iron wrapped with food grade EPDM. It is mainly used in urban

water pipelines. It is currently exclusively used by the Shanghai water system.

Advantage

The valve should be used for open ,close and regulating medium flow in pipeline of petroleum,chemical,food,

medicine,metallurgy,ship,can also be used in a variety of corrosive medium,the following feature.

Excellent bidirectional sealing performance,minimized operation torque.
Flow characteristics tend to be straight,good regulation performance.
Choosing different materials, can be used in corrosive medium.
Simple and compact structure,compact and light,easy to transport,install
and disassemble.

Describe

LWGV-4 Stainless Steel Gate Valve

Actuator：Steel/Casting Handle Wheel

Valve Body：Ductile Iron/GGG40/GGG50

Valve Disc：Ductile Iron GGG50+EPDM

Valve Stem：Carbon Steel/SS410 SS420 SS416 SS304 SS316 SS316L

Valve Seat：EPDM/NBR

Nut: Brass

Standard：PN16

No.：LWGV-4
Size：4inch DN100, DN40-DN800

Weight：16KG----

Temperature：-10℃-120℃
