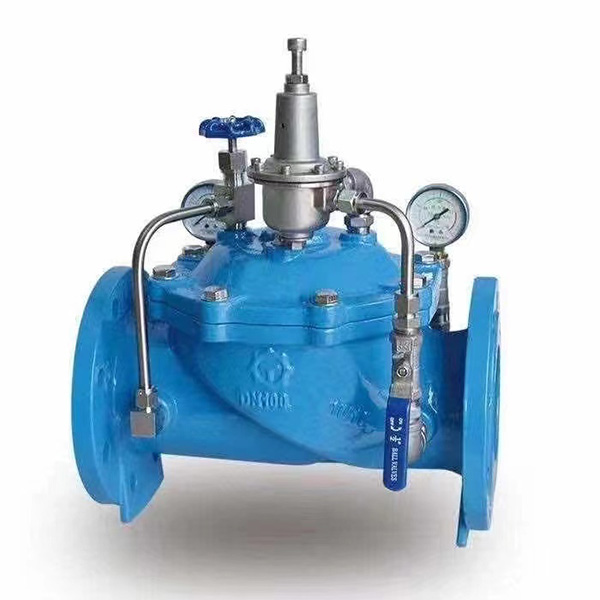

100X/300X/500X/800X Pressure Reducing Valve

Valve Body：Ductile Iron GGG40/GGG50

Valve Gate：SS304 CF8+EPDM

Valve Shaft：SS304 CF8

Glue Ring：EPDM

Bonnet：Ductile Iron GGG40/GGG50

Oring：NBR

Needle Valve：SS304 CF8

Pilot Valve：SS304 CF8

Ball Valve：SS304 CF8

90° Below：SS304 CF8

Direct：SS304 CF8

Connecting pipe：SS304 CF8

Thread plug：SS304 CF8

Size：DN50-DN200

No.：LWPRV-13

Inquire Now

Parameter

Safety Pressure Relief Valve DN40-DN600 PN10-16-25

Safety Pressure Relief Valve
DN50-DN600: 10-16 -25 Bar
Materials:

Body: Cast Iron, Ductile iron, Cast Steel
Cover: Cast Iron, Ductile iron, Cast Steel
Disc: Cast Iron, Ductile iron, Cast Steel
Stem: Stainless steel SS410
Spring: Stainless Steel SS304

Diaphragm: Rubber NBR
Disc Sealing: Rubber EPDM, NBR
Pipeline: Brass
Pilot valve: Brass
Size: DN50-DN600
Rating: 10-16 Bar (Cast iron, Ductile Iron); 10-16-25 Bar (Cast steel)
Body with FBE epoxy coating
Float: Plastic ABS, Stainless Steel SS304

Advantage

In water systems, the valve is installed to connect the heads of water supply and return, to keep the predetermined differential pressure between the supplying and returning heads, so as to maintain a minimum flow rate through the protected equipments (e.g. chiller, boiler, etc) for avoiding damages due to insufficient flow or pressure surge.

Describe

Features:

Normal closed. The valve opens when the downstream pressure exceeds the set limit, to keep the predetermined differential pressure.

Automatic operation. Electrical actuators are not required.
