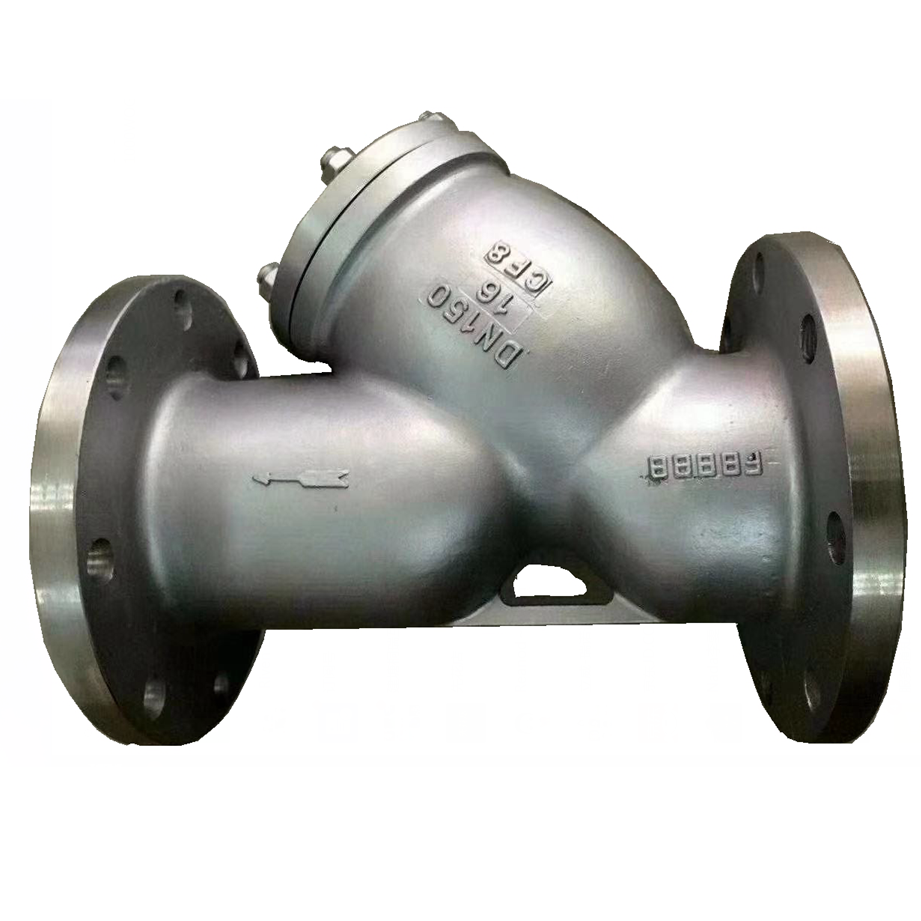

Stainless Steel CF8 SS304 Y Strainer

Body: Stainless Steel CF8，CF8M

Cover: Stainless Steel CF8，CF8M

Screen/bolt/nut: Stainless steel SS304

Paiting: None

Inquire Now

Parameter

Y-Strainers are devices for mechanically removing unwanted solids from liquid, gas or steam lines by

means of a perforated or wire mesh straining element. They are used in pipelines to protect pumps,

meters, control valves, steam traps, regulators and other process equipment.
Y-Strainers are very cost effective straining solutions in many applications. Where the amount of

material to be removed from the flow is relatively small, resulting in long intervals between screen

cleanings, the strainer screen is manually cleaned by shutting down the line and removing the strainer

cap. For applications with heavier dirt loading, Y-Strainers can be fitted with a "blow-off" connection that

permits the screen to be cleaned without removing it from the strainer body.
Y-Strainers are used in a wide variety of liquid straining applications to protect downstream process system

components in many industries, including: chemical processing, petroleum, power generation and marine.

Water handling applications, where Y-Strainers are used to protect equipment that could be damaged or

clogged by unwanted sand, gravel or other debris, are very common.

Advantage

Features

1. Screen made of stainless steel
2. Compact settlement
3. Environment-friendly
4. Cleaning of screen without disassembling
5,Streamline design for low pressure drop.
6,Epoxy coating, prevent corrosion and rust

Describe

Stainless steel perforated screen
